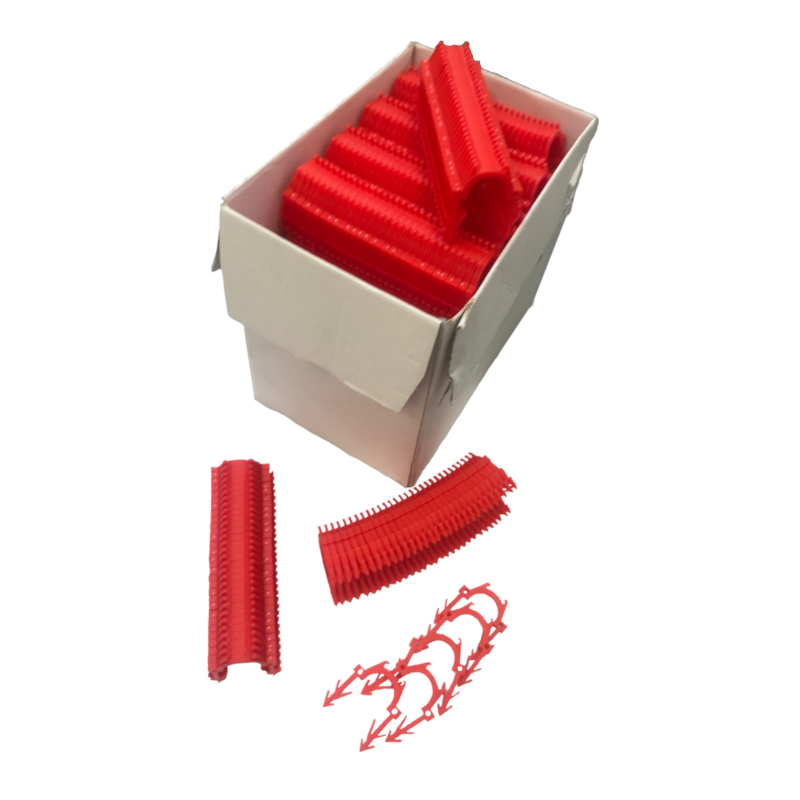

40 mm Underfloor Heating Pipe Clips — Box of 300

40mm Underfloor Heating Pipe Clips — Box of 300

When your project calls for slim insulation boards or rapid clip-rail installs, reach for these 40 mm barbed UFH clips. The shorter legs bite firmly into 25–35 mm PIR/EPS while the wide crown hugs the pipe without crushing it—perfect for low-profile screed systems, overlay panels or any rail-and-clip layout.

Key benefits

• Designed for thin boards – 40 mm depth gives solid anchorage in 25–35 mm insulation where 60 mm staples would punch through.

• Twin-arrow barbs – serrated tips lock into foam and stop uplift when you pressure-test.

• Rail compatible – curved crown snaps cleanly over standard 20 mm UFH clip rails for dead-straight pipe runs.

• Magazine strips – 25 clips per strip feed smoothly through manual or pneumatic clip guns for high-speed laying.

• No corrosion, no staining – made from impact-modified polypropylene, safe in wet screeds and additives.

• Highly visible red – easy to spot and count during QA checks or when trimming excess.

Technical snapshot

Pack contents

• 300 × 40 mm clips (12 magazine strips)

• Supplied in a compact, recyclable cardboard box for tidy van storage.

Installer tip: On 25 mm boards fix clips every 0.4 m on straights and tighten to 0.2 m on bends— your pipe will stay laser-flat even when the screed truck turns up.

Add a box to your cart now and keep every low-profile circuit locked down and leak-free.
